AS-32i: John crane Type 32i replacement

Description:
AS-32i: Replacement of John crane Type 32i mechanical seal dry gas seal

Share this site:

  • Product Detail
  • Make an inquiry
AS-32i: John Crane Type 32i
Product Description
Equivalent to John Crane Type 32i
SS32i seals are dry-running, outside mounted, single seals for top entering mixers incorporating John Crane intelli-face™ technology* for quiet operation.
These seals are excellent for general duty applications on mixers, agitators, and reactors. The design is capable of handling up to 0.150"/3.81mm TIR and is well suited to vacuum or pressure. The Type 32i can be applied to pharmaceutical or general chemical services, and is ideally suited to indoor sites where equipment noise exceeds OSHA limits.
For top entering mixers, agitators and reactor vessels.
Dry-running.
Featuring intelli-face technology.
Proprietary low wear carbon face material.
O-ring design, dual balanced.
SS32i can be equipped with a sanitary gland featuring NPT ports or welded ferrules and certified materials. Electro-polished product contact hardware is optional.
Robust T-Bar drive.
Field repairable.
Performance Capabilities
Temperature:-50°F to 300°F / -45°C to 150°C(depending on materials used)
Pressure:Full vacuum to 225 psig / 15 bar g
Speed:Up to 400 fpm / 2 mps

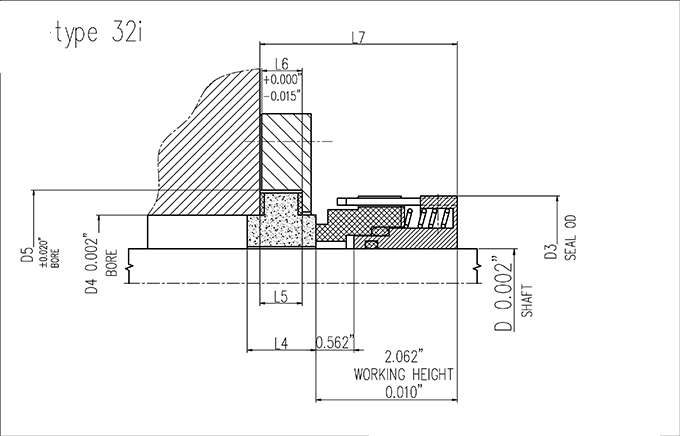

AS-32i Dimensions(Inches)
D D3 D4 D5 L4 L5 L6 L7
1.000 2.500 2.000 2.406 0.812 0.500  0.468 2.718
1.125 2.625 2.125 2.656 0.875 0.500  0.468 2.750
1.250 2.750 2.250 2.781 0.875 0.500  0.468 2.750
1.375 2.875 2.500 3.031 0.875 0.500  0.468 2.750
1.500 3.000 2.625 3.156 0.875 0.500  0.468 2.750
1.625 3.125 2.750 3.281 0.875 0.500  0.468 2.750
1.750 3.250 2.875 3.531 1.000 0.625 0.593 2.875
1.875 3.375 3.000 3.656 1.000 0.625 0.593 2.875
2.000 3.500 3.125 3.781 1.000 0.625 0.593 2.875
2.125 3.625 3.250 3.906 1.000 0.625 0.593 2.875
2.250 3.750 3.375 4.031 1.000 0.625 0.593 2.875
2.375 3.875 3.500 4.156 1.000 0.625 0.593 2.875
2.500 4.000 3.625 4.281 1.000 0.625 0.593 2.875
2.625 4.125 3.750 4.406 1.000 0.625 0.593 2.875
2.750 4.250 3.875 4.531 1.000 0.625 0.593 2.875
2.875 4.375 4.000 4.656 1.000 0.625 0.593 2.875
3.000 4.500 4.125 4.781 1.000 0.625 0.593 2.875
3.125 4.625 4.250 4.906 1.000 0.625 0.593 2.875
3.250 4.750 4.375 5.031 1.000 0.625 0.593 2.875
3.375 4.875 4.500 5.156 1.000 0.625 0.593 2.875
3.500 5.000 4.625 5.218 1.000 0.625 0.593 2.875
3.625 5.125 4.750 5.406 1.000 0.625 0.593 2.875
3.750 5.250 4.875 5.531 1.000 0.625 0.593 2.875
3.875 5.375 5.000 5.656 1.000 0.625 0.593 2.875
4.000 5.500 5.125 5.781 1.000 0.625 0.593 2.875
4.125 5.625 5.250 5.906 1.000 0.625 0.593 2.875
4.250 5.750 5.375 6.031 1.000 0.625 0.593 2.875
4.375 5.875 5.500 6.156 1.000 0.625 0.593 2.875
4.500 6.000 5.625 6.281 1.000 0.625 0.593 2.875
