AS-AD510/AS-AD520: Burgmann AD510/AD520 replacement

Description:
AS-AD510/AS-AD520: Replacement of Burgmann AD510/AD520 mechanical seal dry gas seal

Share this site:

  • Product Detail
  • Make an inquiry
Features
Replacement of Burgmann AD510,AD520
Dry running
Single seal
Independent of direction of rotation
Materials
Seal face: PTFE, Carbon fiber and glass fiber reinforced
Seat: Silicon carbide (Q1), Aluminium oxide(V)
Recommended applications
Chemical industry
Food and beverage industry
Reactors
Polymerization agitators
Mixers
Operating range
Vessel pressure: p = vacuum (7 mbara) … 5 bar (73 PSI)
Vessel temperature: t = -30 °C ... +175 °C (-22 °F … +347 °F)
Sliding velocity: vg = max. 1.0 m/s (3 ft/s)
Allowable gas consumption: 2 Nl/h

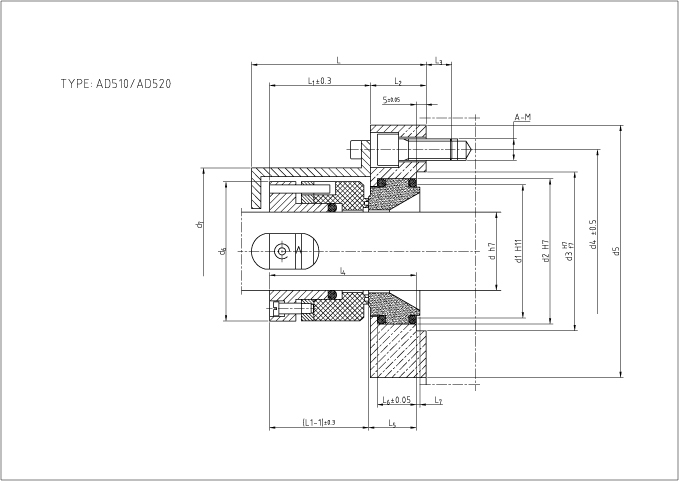

AS-AD510/SS-AD520 Dimenstions(mm)
d d1 d2 d3 d4 d5 d6 d7 l l1 l2 l3 l4 l5 l6 l7 A-M
20 36 42 50 70 90 46 60 77 44 24 11 63 20 16 2 4-M8
25 41 47 55 75 95 51 65 77 44 24 11 63 20 16 2 4-M8
30 46 52 60 80 100 56 70 77 44 24 11 63 20 16 2 4-M8
35 51 57 65 85 105 61 75 77 44 24 11 63 20 16 2 4-M8
40 60 66 75 95 120 70 85 82 47 26 12 68 22 18 2 4-M10
45 65 71 80 100 125 75 90 82 47 26 12 68 22 18 2 4-M10
50 70 76 85 105 130 80 95 82 47 26 12 68 22 18 2 8-M10
55 75 81 90 110 135 85 100 82 47 26 12 68 22 18 2 8-M10
60 85 91 100 120 145 92 110 89 51 28 12 74 24 20 2 8-M10
65 90 96 105 125 150 97 115 89 51 28 12 74 24 20 2 8-M10
70 95 101 110 130 155 102 120 91 51 30 12 76 26 21 2 8-M10
75 104 110 120 140 165 109 130 91 51 30 12 76 26 21 2 8-M10
80 109 115 125 150 178 114 130 98 57 31 15 83 27 22 2 8-M12
85 114 120 130 155 183 120 140 98 57 31 15 83 27 22 2 8-M12
90 119 125 135 160 188 124 140 98 57 31 15 83 27 22 2 8-M12
95 124 130 140 165 193 130 150 98 57 31 15 83 27 22 2 8-M12
100 129 135 145 170 198 134 150 98 57 31 15 83 27 22 2 8-M12
105 134 140 150 175 203 140 160 98 57 31 15 83 27 22 2 8-M12
110 139 145 155 180 208 146 165 98 57 31 15 83 27 22 2 8-M12
120 150 160 170 200 236 160 180 110 63 37 20 95 33 27 3 8-M16
130 160 170 180 210 246 170 190 110 63 37 20 95 33 27 3 8-M16
140 175 185 195 225 260 180 200 110 63 37 20 95 33 27 3 8-M16
150 190 200 210 240 276 200 225 136 85 40 20 120 36 30 3 8-M16
160 200 210 220 250 286 210 230 136 85 40 20 120 36 30 3 8-M16
170 210 220 230 260 296 220 250 136 85 40 20 120 36 30 3 8-M16
180 220 230 240 270 306 230 250 136 85 40 20 120 36 30 3 8-M16
