AS-CDSA: AES CDSA cartridge seal

Description:
AS-CDSA: Replacement of AES CDSA cartridge seal

Share this site:

  • Product Detail
  • Make an inquiry
AS-CDSA: AESSEAL CDSA cartridge mechanical seal

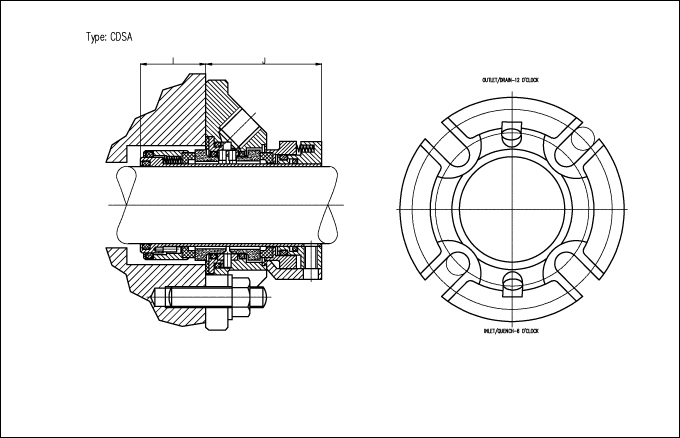

Structure Description:
Equivalent to AES CDSA cartridge seal
Operating Limits:
Temperature：-20℃ to +220℃
Pressure： ≤2.5MPa
Speed： ≤16m/s
Materials:
Stationary Ring：Silicon Carbide, Carbon ,TC,
Rotary Ring：Carbon ,Silicon Carbide,TC
Secondary Seal：EPDM,Viton,Afias ,kalrez
Spring and Metal Parts：304/316

AS-CDSA Dimensions(mm)
d D5 D7 D8 L3 D4(min) D4(max) W(min) W(max) M L1 L2
24 104.8 54.0  49.2 13.2 40.0  46.0  67.0  90.5 12 32.5 52.4
25 104.8 54.0  49.2 13.2 41.0  49.0  67.0  90.5 12 32.5 52.4
28 108.0  57.2 52.4 13.2 44.0  52.3 70.3 93.6 12 32.5 52.4
30 111.0  60.4 55.6 13.2 46.0  55.5 73.5 96.8 12 32.5 52.4
32 111.0  60.4 55.6 13.2 48.0  55.5 73.5 96.8 12 32.5 52.4
33 111.0  60.4 55.6 13.2 49.0  55.5 73.5 96.8 12 32.5 52.4
35 111.0  63.5 58.8 13.2 51.0  57.5 76.6 96.8 12 32.5 54.0
38 127.0  71.5 65.0  16.4 57.2 60.3 85.7 114.3 12 33.3 54.0
40 127.0  71.5 65.0  16.4 58.0  60.4 85.7 114.3 12 33.3 54.0
43 139.7 71.5 65.0  16.4 61.0  63.5 85.7 114.3 12 33.3 54.0
45 139.7 81.0  71.4 16.4 63.5 69.9 95.3 127.0  12 33.3 54.0
48 139.7 81.0  71.4 16.4 66.7 73.0  95.3 127.0  12 33.3 54.0
50 152.4 81.0  71.4 16.4 68.0  73.0  95.3 127.0  12 33.3 54.0
53 152.4 90.5 77.8 16.4 71.0  76.0  104.8 139.7 12 35.0  54.0
55 152.4 90.5 77.8 16.4 74.0  79.4 104.8 139.7 12 35.0  54.0
58 165.1 96.8 84.1 16.4 76.2 82.5 114.3 149.2 16 35.0  54.0
60 165.1 96.8 84.1 16.4 79.4 85.7 114.3 149.2 16 35.0  54.0
63 177.8 109.5 96.8 19.6 85.8 92.1 127.0  160.3 16 38.1 60.3
65 177.8 109.5 96.8 19.6 88.9 95.3 127.0  160.3 16 38.1 60.3
68 177.8 109.5 96.8 19.6 92.1 98.4 127.0  160.3 16 38.1 60.3
70 177.8 109.5 96.8 19.6 92.1 98.4 127.0  160.3 16 38.1 60.3
75 190.5 125.4 108.0  19.6 98.5 108.0  142.9 173.0  16 38.1 60.3
80 190.5 125.4 108.0  19.6 101.6 111.1 142.9 173.0  16 38.1 60.3
85 203.2 135.0  117.5 19.6 108.0  117.5 155.6 182.5 20 38.1 60.3
90 215.9 150.8 127.0  19.6 114.3 127.0  171.5 195.2 20 38.1 60.3
95 215.9 150.8 127.0  19.6 117.5 130.2 171.5 195.2 20 38.1 60.3
100 228.6 168.3 136.5 19.6 123.9 139.7 189.0  208.0  20 38.1 60.3
105 228.6 168.3 136.5 19.6 130.1 149.2 189.0  208.0  20 38.1 60.3
110 241.3 177.8 146.2 19.6 136.5 158.8 198.4 220.6 20 38.1 60.3
115 254.0  186.6 155.8 19.6 142.9 168.3 211.1 230.2 23 38.1 60.3
120 254.0  186.6 155.8 19.6 142.9 168.3 211.1 230.2 23 38.1 60.3
125 254.0  186.6 155.8 19.6 149.2 168.3 211.1 230.2 23 38.1 60.3
