AS-CS: AES CS cartridge seal

Description:
AS-CS: Replacement of AES CS cartridge seal

Share this site:

  • Product Detail
  • Make an inquiry
AS-CS:AES CS cartridge seal
Structure Description:
Equivalent to AES CS cartridge seal
Operating Limits:
Temperature：-50℃ to +204℃
Pressure： ≤1.1MPa
Speed： ≤15m/s
Materials:
Rotary Ring：Resin Impregnated Carbon Graphite
Secondary Seal：Viton,EPDM,NBR,FFKM
Spring and Metal Parts：304/316

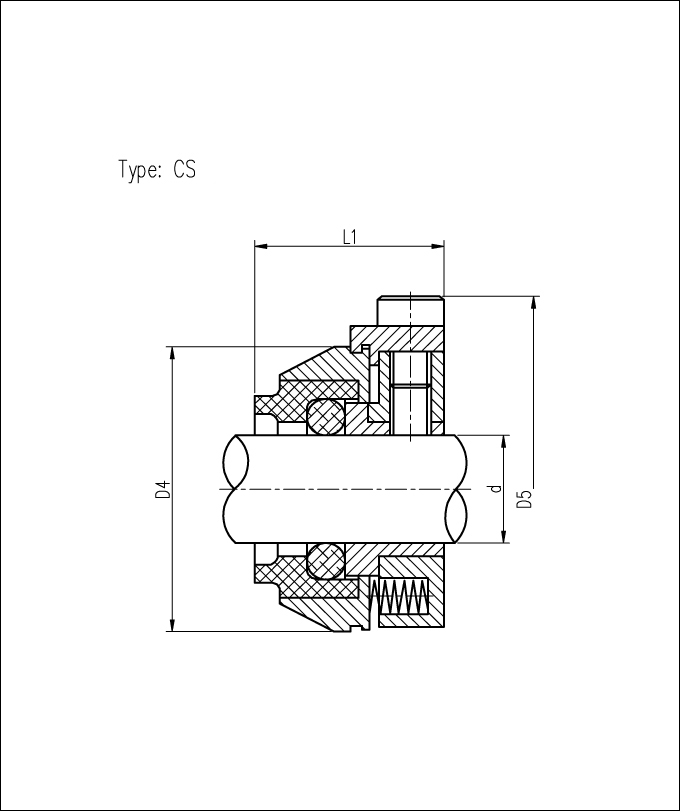

AS-CS Dimensions(mm)
d L1 D4 D5
20 27.91 45.3 59.8
22 27.91 47.3 61.8
24 27.90  49.3 63.8
25 27.90  50.3 64.8
28 27.91 53.3 67.8
30 27.91 55.3 69.8
32 27.91 57.3 71.8
33 27.90  58.3 72.8
35 27.91 60.3 74.8
38 27.91 63.3 77.8
40 27.91 65.3 79.8
42 27.90  67.3 81.8
43 27.90  68.3 82.8
45 27.91 70.3 84.8
48 27.91 73.3 87.8
50 27.90  75.3 89.8
53 27.91 78.3 92.8
55 27.90  80.3 94.8
60 27.91 85.3 99.7
65 30.30  96.5 111.0
70 30.28 101.5 116.0
75 30.28 106.5 121.0
80 30.28 111.5 126.0
85 30.28 116.5 131.0
90 30.28 121.5 136.0
95 30.30  126.5 141.0
100 30.28 131.5 146.0

AS-CS Dimensions(inches)
d L1 D4 D5
0.625" 1.098 1.622 2.192
0.750" 1.098 1.747 2.317
0.875" 1.098 1.872 2.442
1.000" 1.098 1.997 2.567
1.125" 1.098 2.122 2.692
1.250" 1.098 2.247 2.817
1.375" 1.098 2.372 2.942
1.500" 1.098 2.497 2.067
1.625" 1.098 2.622 3.192
1.750" 1.098 2.747 3.317
1.875" 1.098 2.872 3.442
2.000" 1.098 2.997 3.567
2.125" 1.098 3.122 3.692
2.250" 1.098 3.247 3.817
2.375" 1.098 3.372 3.942
2.500" 1.098 3.497 4.067
2.625" 1.192 3.866 4.436
2.750" 1.192 3.991 4.561
2.875" 1.192 4.116 4.686
3.000" 1.192 4.241 4.811
3.125" 1.192 4.366 4.936
3.250" 1.192 4.491 5.061
3.375" 1.192 4.616 5.186
3.500" 1.192 4.741 5.311
3.625" 1.192 4.866 5.436
2.750" 1.192 4.991 5.561
2.875" 1.192 5.116 5.686
4.000" 1.192 5.241 5.811
