Structure Description:
Replacement of Grundfos pump seal
Operating Limits:
Temperature: -20℃ to +180℃
Pressure: ≤1.2MPa
Speed: ≤10m/s
Standard Size:12mm,16mm
Materials:
Stationary Ring: Carbon, Silicon Carbide, TC
Rotary Ring: Silicon Carbide, TC, ceramic
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: 316
Applications: Clean water, sewage water, oil and other moderately corrosive fluids
Replacement of Grundfos pump seal
Operating Limits:
Temperature: -20℃ to +180℃
Pressure: ≤1.2MPa
Speed: ≤10m/s
Standard Size:12mm,16mm
Materials:
Stationary Ring: Carbon, Silicon Carbide, TC
Rotary Ring: Silicon Carbide, TC, ceramic
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: 316
Applications: Clean water, sewage water, oil and other moderately corrosive fluids

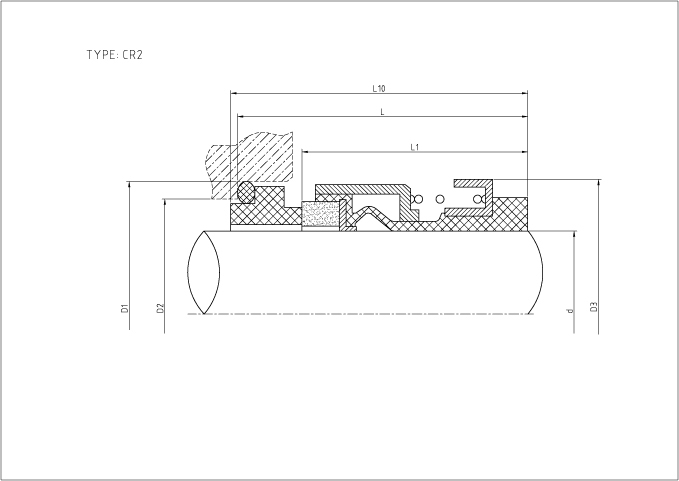

| Size(d) | D2 | D1 | D3 | L1 | L | L10 |
| 12 | 19 | 23 | 22 | 31.0 | 39.0 | 40.5 |
| 16 | 23 | 27 | 26 | 32.5 | 40.5 | 41.5 |
| Dimension in minimeter | ||||||
