AS-Type 613: John crane Type 613 replacement

Description:
AS-Type 613: metal bellows seal Replacement of John crane Type 613

Share this site:

  • Product Detail
  • Make an inquiry
AS-613
Structure Description:
Equivalent to John Crane Type 613
Wet/Dry Running Cartridge Sealol® Metal Bellows Seal
Operating Limits:
Temperature:75°C to 200°C/-100°F to 400°F
Speed: 25m/s
Presure: 10bar
Standard size: 16-100mm
Material:
Seal ring: Car,Sic
Bellows: Alloy C-276 (UNS N10276)
Secondary Seal: Fluorocarbon,EPR,Perfluoroelastomer PTFE-Encapsulated Fluorocarbon
Spring and Metal parts: 316,Alloy 20

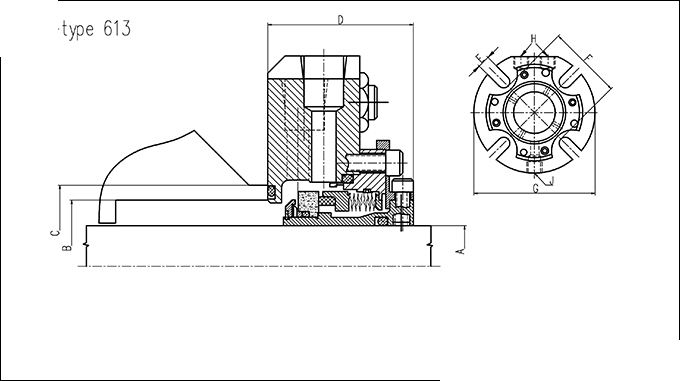

AS-613 Dimensional Data (mm)
Shaft Size
A		 B C D  E F  G H J
33 53.98 60.33 52.43 12.70 71.45 117.48 1/4-18 3/8-18
35 53.98 60.33 52.43 12.70 71.45 117.48 1/4-18 3/8-18
43 66.68 76.19 53.98 14.27 85.73 119.35 3/8-18 3/8-18
45 66.68 76.19 53.98 14.27 85.73 119.35 3/8-18 3/8-18
53 83.00 95.00 61.90 14.27 100.03 152.40 3/8-18 3/8-18
55 83.00 95.00 61.90 14.27 100.03 152.40 3/8-18 3/8-18
65 92.08 107.95 70.64 17.45 122.25 171.45 3/8-18 3/8-18

AS-613 Dimensional Data (inches)
Shaft Size
A		 B C D  E F  G H J
1.125 2.000 2.250 2.00 0.44 2.44 4.625 1/4-18 3/8-18
1.375 2.125 2.375 2.06 0.50 2.81 4.625 1/4-18 3/8-18
1.375* 2.875 3.312 2.06 0.44 3.44 5.250 1/4-18 3/8-18
1.750 2.625 3.000 2.13 0.56 3.38 5.500 3/8-18 3/8-18
1.750* 3.500 3.937 2.13 0.69 4.44 6.750 3/8-18 3/8-18
1.875 2.750 3.125 2.19 0.56 3.31 5.500 3/8-18 3/8-18
1.875* 3.625 4.125 2.56 0.56 4.44 6.000 3/8-18 3/8-18
2.125 3.062 3.437 2.44 0.56 3.94 6.000 3/8-18 3/8-18
2.125* 4.000 4.437 2.44 0.75 4.75 7.250 3/8-18 3/8-18
2.500 3.500 4.000 2.63 0.75 4.25 6.750 3/8-18 3/8-18
2.500* 4.750 5.250 2.63 0.69 5.56 8.000 3/8-18 3/8-18
2.625 3.625 4.250 2.78 0.69 4.81 6.750 3/8-18 3/8-18
2.625* 4.625 5.125 2.78 0.69 5.31 7.375 3/8-18 3/8-18
