AS-MFLWT80: Burgmann MFLWT80 replacement

Description:
AS-MFLWT80: Perfect replacement of Burgmann MFLWT80 mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry
Structure Description:
Equivalent to Burgmann MFLWT80
Welded metal bellows design with totque transmission
Operating Limits:
Temperature:-20---400℃
Speed: 20m/s
Presure: 25bar
Standard size: 16-100mm
Material:
Seal ring: Car,Sic,Ssic,TC
Secondary seal: Carbon graphite
Spring and Metal parts:304,316,AM350,HAST.C,Inconel 718,Titanium

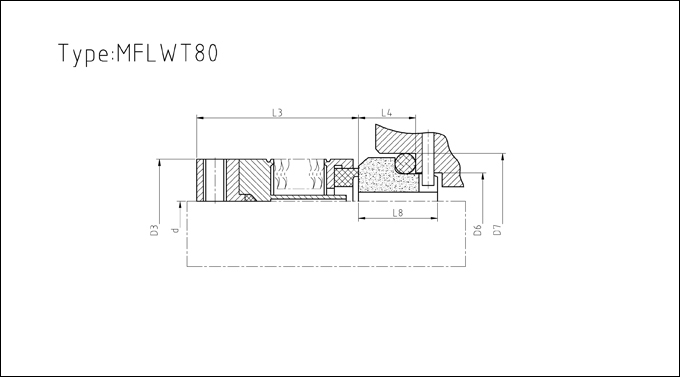

AS-MFLWT80 Dimensions(mm)
d D3 D6 D7 L3 L8 L4
16 38.0 29.0 35.0 46.5 19.5 11.5
18 40.0 31.0 37.0 46.5 19.5 11.5
20 42.0 34.0 40.0 46.5 19.5 11.5
22 44.0 37.0 43.0 46.5 19.5 11.5
24 46.0 37.0 43.0 46.5 19.5 11.5
25 47.0 39.0 45.0 46.5 19.5 11.5
28 50.0 42.0 48.0 46.5 19.5 11.5
30 52.0 44.0 50.0 46.5 19.5 11.5
32 54.0 49.0 56.0 46.5 22.0 14.0
33 55.0 49.0 56.0 46.5 22.0 14.0
35 57.0 51.0 58.0 46.5 22.0 14.0
38 60.0 54.0 61.0 46.5 22.0 14.0
40 66.0 56.0 63.0 47.5 22.0 14.0
43 69.0 59.0 66.0 47.5 22.0 14.0
45 71.0 62.0 70.0 47.5 23.0 15.0
48 74.0 65.0 73.0 47.5 23.0 15.0
50 76.0 67.0 75.0 47.5 23.0 15.0
53 79.0 70.0 78.0 47.5 23.0 15.0
55 81.0 72.0 80.0 47.5 23.0 15.0
58 85.0 75.0 83.0 53.0 23.0 15.0
60 87.0 77.0 85.0 53.0 23.0 15.0
63 90.0 81.0 90.0 53.0 26.0 18.0
65 92.0 83.0 92.0 53.0 26.0 18.0
68 95.0 88.0 97.0 53.0 26.0 18.0
70 97.0 88.0 97.0 53.0 26.0 18.0
75 102.0 95.0 105.0 52.8 26.2 18.2
80 107.0 100.0 110.0 52.8 26.2 18.2
85 112.0 105.0 115.0 52.8 26.2 18.2
90 117.0 110.0 120.0 53.8 25.2 17.2
95 122.0 115.0 125.0 53.8 25.2 17.2
100 127.0 122.2 134.3 54.0 30.0 20.0
