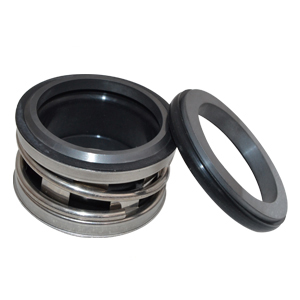

AS-2100: John Crane Type 2100 elastomer bellows seal

Description:
AS-2100: Replacement of John crane Type 2100 AES B05 Flowserve 140 Sterling 540 VULCAN 14DIN

Share this site:

  • Product Detail
  • Make an inquiry
AS-2100: John crane Type 2100
Structure Description:
Equivalent to John crane Type 2100,AES B05 seal, Flowserve Pac-Seal 140, Sterling 540, VULCAN 140
Rubber bellows design
Operating Limits:
Temperature:-20---120℃
Speed: 15m/s
Pressure: 18bar
Standard size: 10mm--100mm
Materials:
Seal ring: Car,Sic,Ssic,Ceramic,TC
Secondary seal: NBR,EPDM,Viton etc.
Spring and metal parts:304,316,HAST.C

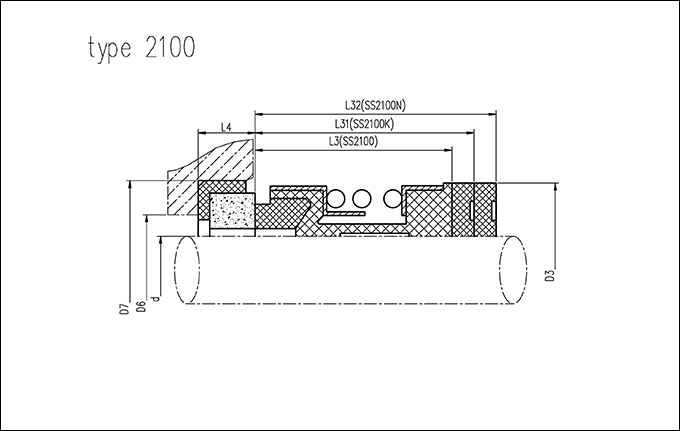

AS-2100 Dimensions(mm)
d(mm) D3 D6 D7 L3 L31 L32 L4
10 20 15 21 15 27.5 35.0 5.0
12 22 17 23 15 26.5 34.0 6.0
14 24 19 25 15 29.0 34.0 6.0
15 25 20 26 15 29.0 34.0 6.0
16 26 23 27 15 29.0 34.0 6.0
18 32 25 33 20 31.5 39.0 6.0
20 34 27 35 20 31.5 39.0 6.0
22 36 29 37 20 31.5 39.0 6.0
24 38 31 39 20 34.0 44.0 6.0
25 39 32 40 20 34.0 44.0 6.0
28 42 35 43 26 36.5 44.0 6.0
30 44 37 45 26 35.5 43.0 7.0
32 46 40 48 26 35.5 48.0 7.0
33 47 40 48 26 35.5 48.0 7.0
35 49 42 50 26 34.5 47.0 8.0
38 54 47 56 30 37.0 47.0 8.0
40 56 49 58 30 37.0 47.0 8.0
43 59 52 61 30 37.0 52.0 8.0
45 61 54 63 30 37.0 52.0 8.0
48 64 57 66 30 35.0 50.0 10.0
50 66 60 70 30 37.5 50.0 10.0
53 69 63 73 30 37.5 60.0 10.0
55 71 65 75 30 37.5 60.0 10.0
58 78 68 78 33 42.5 60.0 10.0
60 80 70 80 33 40.5 58.0 12.0
63 83 73 83 33 40.5 58.0 12.0
65 85 75 85 33 40.5 68.0 12.0
68 88 79 90 33 40.5 68.0 12.0
70 90 81 92 33 48.0 68.0 12.0
75 99 86 97 40 48.0 68.0 12.0
80 104 92 105 40 47.5 77.5 12.5
85 109 97 110 40 47.5 77.5 12.5
90 114 102 115 40 52.5 77.5 12.5
95 119 117 120 40 52.5 77.5 12.5
100 124 122 125 40 52.5 77.5 12.5
