AS-2106: John crane Type 2106 elastomer bellows seal

Description:
AS-2106: Perfect replacement of John crane Type 2106 elastomer bellows mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry
AS-2106
Structure Description:
Equivalent to John crane Type 2106
Rubber bellows design
Operating Limits:
Temperature: -20---120º C
Speed: 15m/s
Pressure: 18bar
Standard size: 10mm--25mm or 0.437″--0.875″
Material:
Seal ring: Car, Sic, Ssic, Ceramic, TC
Secondary seal: NBR, EPDM, Viton etc.
Spring and metal parts: 304, 316, HAST. C

The SS-2106 is a compact, unitized, single spring, elastomer bellows mechanical seal.

SS2106 seals are designed for use in small centrifugal water pumps, deep and shallow well jet pumps, Swimming pool pumps and wastewater pumps.

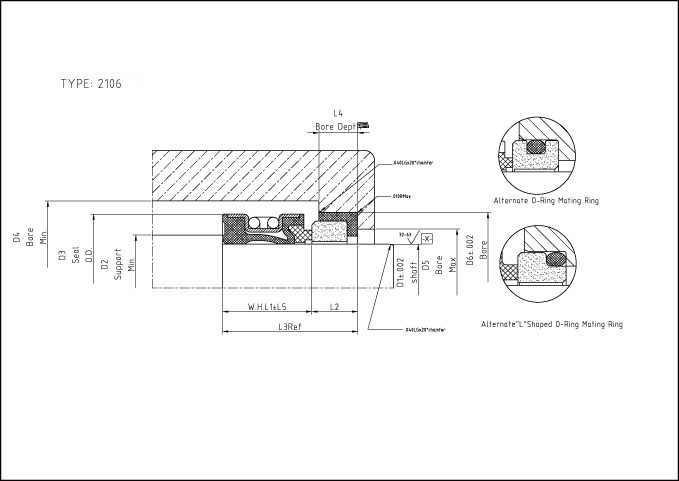

AS-2106 Dimensions(mm)
D1 D2 D3 D4 D5 D6 L1 L2 L3 L4 L5
10.00 13.60 20.00 22.00 17.00 21.00 15.00 5.0 20.00 5.5 1.0
12.00 16.00 22.00 24.00 19.00 23.00 15.00 6.0 21.00 5.5 1.0
14.00 17.80 24.00 26.00 21.00 25.00 15.00 6.0 21.00 5.5 1.0
15.00 18.50 25.00 27.00 22.00 26.00 15.00 6.0 21.00 5.5 1.0
16.00 19.50 26.00 28.00 23.00 27.00 15.00 6.0 21.00 5.5 1.0
18.00 22.75 32.00 34.00 27.00 33.00 20.00 6.0 21.00 7.0 1.5
20.00 24.75 34.00 36.00 29.00 35.00 20.00 6.0 21.00 7.0 1.5
22.00 26.75 36.00 38.00 31.00 37.00 20.00 6.0 21.00 7.0 1.5
24.00 28.75 38.00 40.00 33.00 39.00 20.00 6.0 21.00 7.0 1.5
25.00 29.75 38.00 41.00 34.00 40.00 20.00 6.0 21.00 7.0 1.5

SS-2106 Dimensions(inches)
D1 D2 D3 D4 D5 D6 L1 L2 L3 L4 L5
0.437 0.580 0.866 1.181 0.562 1.181 0.769 0.281 1.050 0.281 0.040
0.500 0.656 0.945 1.125 0.562 1.000 0.591 0.312 0.906 0.281 0.040
0.500 0.656 0.945 1.125 0.562 1.000 0.656 0.312 0.968 0.281 0.040
0.500 0.656 0.945 1.125 0.562 1.000 0.812 0.312 1.125 0.281 0.040
0.625 0.765 1.024 1.375 0.812 1.250 0.591 0.312 1.000 0.343 0.040
0.625 0.765 1.024 1.375 0.812 1.187 0.591 0.406 0.937 0.343 0.040
0.625 0.765 1.024 1.375 0.812 1.250 0.718 0.343 1.125 0.343 0.040
0.625 0.765 1.024 1.375 0.812 1.187 0.718 0.406 1.062 0.343 0.040
0.625 0.765 1.024 1.375 0.812 1.250 0.875 0.343 1.281 0.343 0.040
0.625 0.765 1.024 1.375 0.812 1.187 0.875 0.406 1.218 0.343 0.040
0.750 0.937 1.260 1.500 0.937 1.375 0.718 0.343 1.062 0.343 0.060
0.750 0.937 1.260 1.500 0.937 1.375 0.718 0.338 1.125 0.343 0.060
0.750 0.937 1.260 1.500 0.937 1.375 0.787 0.406 1.125 0.343 0.060
0.750 0.937 1.260 1.500 0.937 1.375 0.787 0.338 1.193 0.343 0.060
0.750 0.937 1.260 1.500 0.937 1.375 0.875 0.406 1.281 0.343 0.060
0.750 0.937 1.260 1.500 0.937 1.375 0.875 0.338 1.218 0.343 0.060
0.875 1.062 1.398 1.625 1.062 1.500 0.787 0.406 1.193 0.343 0.060
0.875 1.062 1.398 1.625 1.062 1.500 0.812 0.406 1.218 0.343 0.060
0.875 1.062 1.398 1.625 1.062 1.500 0.937 0.406 1.343 0.343 0.060
1.000 1.187 1.535 1.687 1.312 1.625 0.787 0.437 1.224 0.375 0.060
1.000 1.187 1.535 1.687 1.312 1.625 0.812 0.437 1.250 0.375 0.060
1.000 1.187 1.535 1.687 1.312 1.625 1.000 0.437 1.437 0.375 0.060
