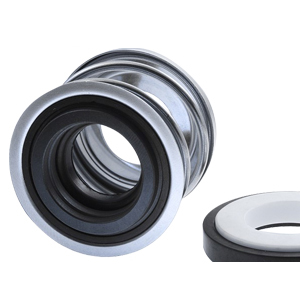

AS-BT-PN:Burgmann BT-PN,John Crane Type 106 mechanical seal
Features:
Equivalent to Burgmann BT-PN,John Crane Type 106
Single and dual seals
Short axial installation length
Material approvals available
Operating range:
Shaft diameter: d1 = 8 … 30 mm
Pressure: p1* = 12 bar (170 PSI)
Temperature: t* = -20 °C … +120 °C (-4 °C … +248 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
*) Depending on medium, size and material
Materials:
Seal face: Carbon graphite resin impregnated (B), Carbon graphite solid (B3), Silicon carbide (Q1, Q6)
Seat: Steatite (X), Aluminium oxide (V, V1), Silicon carbide (Q1, Q6)
Elastomer: NBR (P), EPDM (E), FKM (V)
Metal parts: CrNiMo steel (G), CrNi steel (F)
Recommended applications:
Water and waste water technology
Building services industry
Food and beverage industry
Water and waste water
Beverages and food stuffs
Submersible motors up to 4 inches
Submersible pumps, back-to-back installation
Peripheral pumps for industrial applications
Domestic and garden pumps
Coffee machines
Water pumps
Advantages:
The small seal for increased pressure. The S-SBT-PN is a mechanical seal with a simple but effective design for mass-produced pumps. The special spring arrangement allows a short axial installation length. This advantage is combined with an increased working pressure capability and because the spring is free from torque transmission.
Features:
Equivalent to Burgmann BT-PN,John Crane Type 106
Single and dual seals
Short axial installation length
Material approvals available
Operating range:
Shaft diameter: d1 = 8 … 30 mm
Pressure: p1* = 12 bar (170 PSI)
Temperature: t* = -20 °C … +120 °C (-4 °C … +248 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
*) Depending on medium, size and material
Materials:
Seal face: Carbon graphite resin impregnated (B), Carbon graphite solid (B3), Silicon carbide (Q1, Q6)
Seat: Steatite (X), Aluminium oxide (V, V1), Silicon carbide (Q1, Q6)
Elastomer: NBR (P), EPDM (E), FKM (V)
Metal parts: CrNiMo steel (G), CrNi steel (F)
Recommended applications:
Water and waste water technology
Building services industry
Food and beverage industry
Water and waste water
Beverages and food stuffs
Submersible motors up to 4 inches
Submersible pumps, back-to-back installation
Peripheral pumps for industrial applications
Domestic and garden pumps
Coffee machines
Water pumps
Advantages:
The small seal for increased pressure. The S-SBT-PN is a mechanical seal with a simple but effective design for mass-produced pumps. The special spring arrangement allows a short axial installation length. This advantage is combined with an increased working pressure capability and because the spring is free from torque transmission.

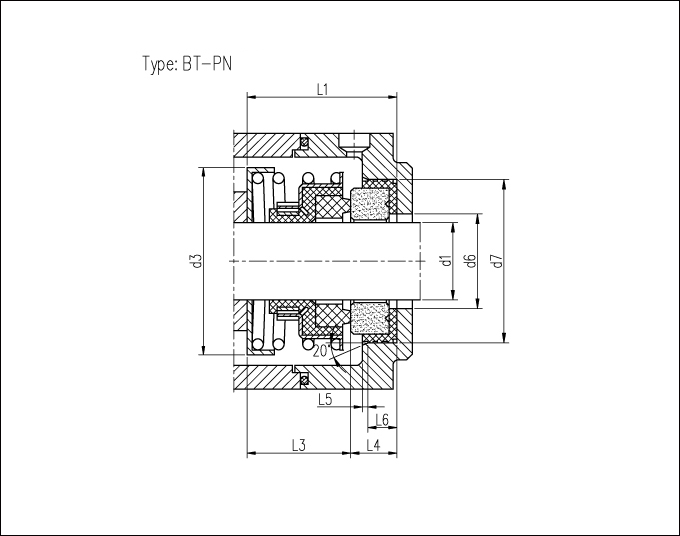

| AS-BT-PN Dimensions(mm) | ||||||||
| d1 | d3 | d6 | d7 | l1 | toll | l4 | l5 | l6 |
| 8.00 | 23 | 10 | 22.00 | 17.50 | ±1 | 4.0 | 0.5 | 3.5 |
| 8.00 | 23 | 10 | 25.40 | 19.00 | ±1 | 5.5 | 0.5 | 4.5 |
| 3/8" | 23 | 12 | 25.40 | 19.00 | ±1 | 5.5 | 0.5 | 4.5 |
| 10.00 | 23 | 12 | 25.40 | 19.00 | ±1 | 5.5 | 0.5 | 4.5 |
| 13.00 | 32 | 17 | 29.50 | 20.80 | ＋0.7/0 | 8.0 | 1.0 | 6.0 |
| 14.00 | 32 | 17 | 29.50 | 20.80 | ＋0.7/0 | 8.0 | 1.0 | 6.0 |
| 15.00 | 32 | 17 | 29.50 | 20.80 | ＋0.7/0 | 8.0 | 1.0 | 6.0 |
| 16.00 | 32 | 17 | 29.50 | 20.80 | ＋0.7/0 | 8.0 | 1.0 | 6.0 |
| 16.00 | 32 | 17 | 29.50 | 24.30 | ＋0.7/0 | 8.0 | 1.0 | 6.0 |
| 20.00 | 44 | 22 | 42.00 | 22.00 | ±1 | 8.0 | 1.0 | 6.0 |
| 25.00 | 50 | 27 | 42.00 | 24.00 | ±1 | 7.0 | 1.0 | 5.0 |
| 30.00 | 60 | 33 | 52.00 | 32.00 | ±1 | 10.0 | 1.0 | 6.0 |
