AS-EA100: Burgmann EA100 replacement

Description:
AS-EA100: Perfect replacement of Burgmann EA100 supplied by Saisi Mechanical Seal Co. Ltd.

Share this site:

  • Product Detail
  • Make an inquiry
AS-EA100: Burgmann EA100 mechanical seal
Features:
Equivelant to Burgmann EA100
Single seal
In-house manufactured carbon seal faces
Three different impeller connections available
Operating range:
Shaft diameter: d1 = 8 … 20 mm (0.32" ... 0.78")
Pressure: p1 = 5 bar (73 PSI), vacuum up to 0.1 bar (1.45 PSI)
Temperature: t = -20 °C … +100 °C (-4 °F… +212 °F)
Sliding velocity: vg = 5 m/s (16 ft/s)
Axial movement: ± 2.0 mm
Material:
Seal face: Carbon graphite resin impregnated (B)
Seat: Aluminium oxide (V)
Elastomer: NBR (P)
Metal parts: CrNi steel (F)
Advantages:
The EA100 is the specialist for low duty applications and one of our historic and bestselling seals in this sector. The seal is easy to handle and quick to install. An incorporated garter spring assures a good grip of the bellows on the shaft and enhances satisfactory sealing performance. With the ability of the bellows to stretch and tighten, the SSEA100 is insensitive to shaft movements. The seal design is available in 3 types, each with a different impeller connection: o SSEA102 is with a collar. SSEA103 is without a collar. SSEA104 provides a different coil spring installation. More information on SSEA103 and SSEA104 is available on request.

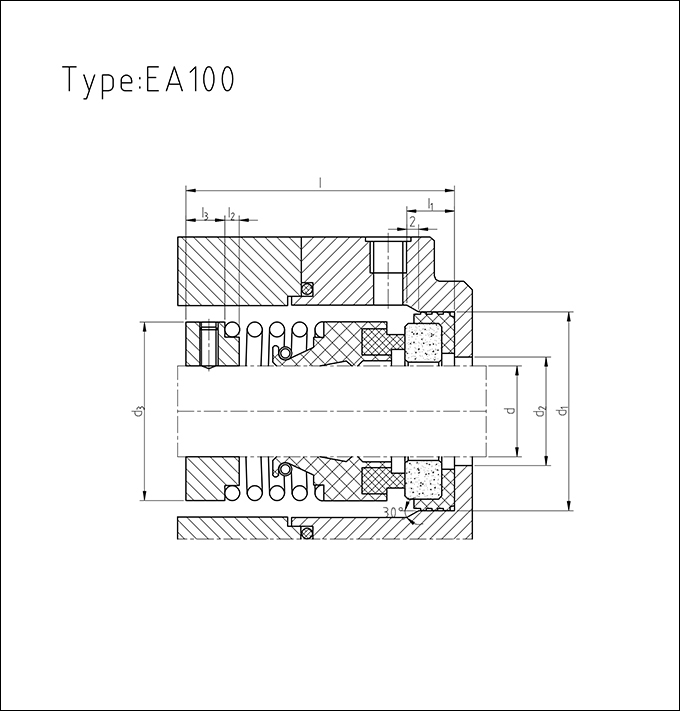

AS-EA100 Dimensions(mm)
d  d1 d2 d3 l l1 l2 l3
8 1 13 18.5 26 7 2 8
9 4 16 22.5 31 7 2 8
10 24 16 22.5 31 7 2 8
11 24 16 22.5 31 7 2 8
12 26 17 24.5 32 7 2 8
13 26 17 24.5 32 7 2 9
14 28 21 28.5 34 7 3 9
15 28 21 28.5 34 7 3 9
16 32 22 30.5 26 8 3 9
17 32 22 30.5 36 8 3 9
18 35 25 3.5 39 8 3 10
19 35 25 3.5 39 8 3 10
20 38 27 5.5 41 8 3 10
