AS-EA560: Burgmann EA560 replacement

Description:
AS-EA560: Perfect replacement of Burgmann EA560 supplied by Saisi Mechanical Seal Co. Ltd.

Share this site:

  • Product Detail
  • Make an inquiry

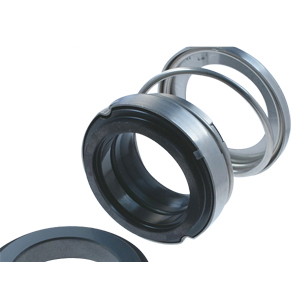

SS-EA560：Burgmann EA560 mechanical seal
Structure Description:
Equivalent to Burgmann EA560
Rubber bellows design
Operating Limits:
Temperature:-20--120℃
Speed: 15m/s
Pressure: 10bar
Standard size:8-50mm or 0.375"--2"
Material:
Seal ring: Car,Sic,Ssic,Ceramic,TC
Secondary seal: NBR,EPDM,Viton
Spring and metal parts:304,316,HAST.C

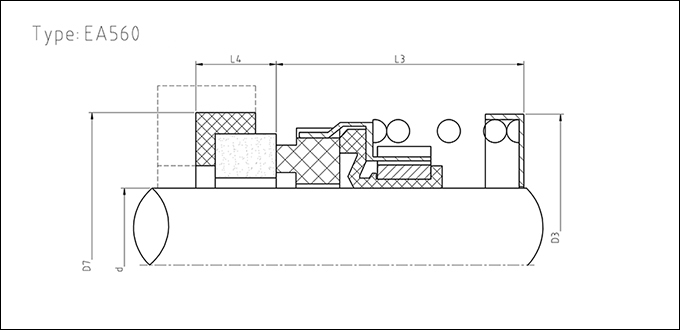

SS-EA560 Dimensions(mm)
d(mm) D3 D7 L3 L4
8 18.2 21 11 7
9 18.2 24 16 7
10 20.6 24 16 7
11 20.6 24 16 7
12 21.8 26 17 7
13 21.8 26 17 7
14 26.4 28 18 7
15 26.4 28 18 7
16 26.4 32 19 8
17 28.5 32 19 8
18 29.5 35 19 8
19 29.5 35 19 8
20 31.6 38 20 8
22 33.6 40 20 8
25 39.6 44 20 9
28 45 46 21 9
30 46.6 50 22 9
32 46.6 54 24 9
35 50.8 58 26 10
38 54.3 60 27 10
40 57.3 64 28 10
45 61.3 66 30 10
50 67.8 72 32 10

SS-EA560 Dimensions(inches)
d(inch) d D3 D7 L3 L4
0.375 9.525 23.5 22.225 22.2 6.4
0.500 12.700 26.0 25.400 22.2 6.4
0.625 15.875 30.0 31.750 23.8 8.7
0.750 19.050 32.5 34.925 23.8 8.7
0.875 22.225 37.5 38.100 25.4 8.7
1.000 25.400 44.0 41.275 27.0 9.5
1.125 28.575 48.0 44.450 28.6 9.5
1.250 31.750 50.0 47.625 28.6 9.5
1.375 34.925 54.5 50.800 30.2 9.5
1.500 38.100 58.5 53.975 30.2 9.5
1.625 41.275 64.0 60.325 36.5 11.1
1.750 44.450 67.0 63.500 36.5 11.1
1.875 47.625 71.0 66.675 39.7 11.1
2.000 50.800 73.5 69.850 39.7 11.1
