AS-G seats: Burgmann G seats replacement

Description:
AS-G seats: Perfect replacement of Burgmann G seats supplied by Saisi Mechanical Seal Co. Ltd.

Share this site:

  • Product Detail
  • Make an inquiry
AS-G seats:Burgmann G4, G6, G9, G13, G50, G60 repalcements
G4/G6/G9/G50/G60 AVAILABLE IN ALUMINA CERAMIC, STAINLESS STEEL, SILICON CARBIDE, TUNGSTEN CARBIDE
G13 TYPICALLY AVAILABLE IN CARBON

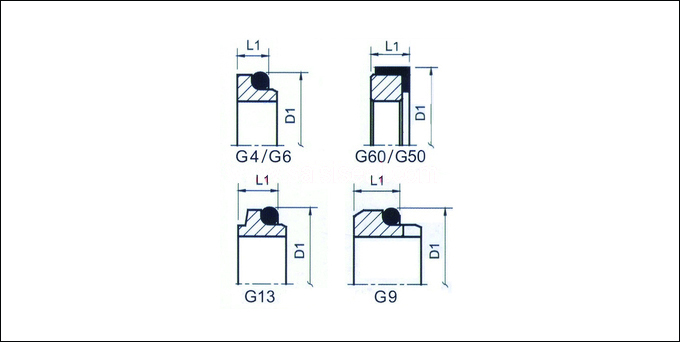

AS-G seats Dimensions(mm)
d(mm) G4 G6/G60 G13 G9 G50
D1 L1 D1 L1 D1 L1 D1 L1 D1 L1
10 19.2 6.6 21 6.6 19.2 7.1 21 10.0 24.60 9.0
12 21.6 5.6 23 6.6 21.6 7.6 23 10.0 27.80 9.0
14 24.6 5.6 25 6.6 24.6 7.6 25 10.0 30.95 10.5
15 24.6 6.6 27 6.6 24.6 9.0 27 10.0 30.95 10.5
16 28.0 7.5 27 6.6 28.0 9 27 10.0 30.95 10.5
18 30.0 8.0 33 7.5 30.0 10.0 33 11.5 34.15 10.5
20 35.0 7.5 35 7.5 35.0 9.5 35 11.5 35.70 10.5
22 35.0 7.5 37 7.5 35.0 9.5 37 11.5 37.30 10.5
24 38.0 7.5 39 7.5 38.0 9.5 39 11.5 40.50 10.5
25 38.0 7.5 40 7.5 38.0 11.0 40 11.5 40.50 10.5
28 42.0 9.0 43 7.5 42.0 11 43 11.5 47.65 12.0
30 45.0 10.5 45 7.5 45.0 11.0 45 11.5 50.80 12.0
32 48.0 10.5 48 7.5 48.0 11 48 11.5 50.80 12.0
33 50.0 11.0 48 7.5 50.0 11.5 48 11.5 54.00 12.0
35 52.0 11.0 50 7.5 52.0 11.5 50 11.5 54.00 12.0
38 55.0 10.3 56 9.0 55.0 11.5 56 14.0 57.15 12.0
40 58.0 10.8 58 9.0 58.0 11.5 58 14.0 60.35 12.0
42 60.0 12.0 61 9.0 60.0 14.3 61 14.0 63.50 12.0
43 62.0 12.0 61 9.0 62.0 14.3 61 14.0 63.50 12.0
45 64.0 11.6 63 9.0 64.0 14.3 63 14.0 63.50 12.0
48 68.4 11.6 66 9.0 68.4 14.3 66 14.0 66.70 12.0
50 69.3 11.6 70 9.5 69.3 14.3 70 15.0 69.85 13.5
53 72.3 12.3 73 11.0 72.3 14.3 73 15.0 73.05 13.5
55 75.4 13.3 75 11.0 75.4 15.3 75 15.0 76.20 13.5
58 78.4 13.3 78 11.0 78.4 15.3 78 15.0 79.40 13.5
60 80.4 13.3 80 11.0 80.4 15.3 80 15.0 79.40 13.5
63 83.4 13.3 83 11.0 83.0 15.3 83 15.0 82.50 13.5
65 85.4 13.0 85 11.0 85.0 15.3 85 15.0 92.10 16.0
68 91.5 13.7 90 11.3 91.5 16 90 18.0 95.25 16.0
70 92.0 13.0 92 11.3 92.0 15.3 92 18.0 95.25 16.0
75 99.0 14.0 97 11.3 99.0 15.3 97 18.0 101.60 16.0
80 104.0 15.0 105 12.0 104.0 16.3 105 18.2 114.30 20.0
85 109.0 14.8 110 14.0 109.0 16.3 110 18.2 117.50 20.0
90 114.0 14.8 115 14.0 114.0 16.3 115 18.2 123.85 20.0
95 120.3 15.8 120 14.0 120.3 17.3 120 17.2 127.00 20.0
100 123.3 15.8 125 14.0 123.3 17.3 125 17.2 133.35 20.0
