AS-H3B: Burgmann H3B replacement

Description:
AS-H3B: Perfect replacement of Burgmann H3B supplied by Saisi Mechanical Seal Co. Ltd.

Share this site:

  • Product Detail
  • Make an inquiry
AS-H3B:Burgmann H3B mechanical seal replacement
Features:
Equivelant to Burgmann H3B
Single Seal
Balanced
Independent of direction of rotation
Operating range:
Pressure: p = 12 bar (174 PSI)
Temperature: t = -20 °C … +160 °C (-4 °F … 320 °F)
Sliding velocity: vg = 20 m/s (66 ft/s)
Viscosity: … 300 mPa·s
Solids content: … 7 %
Materials:
Seal face and seat: Silicon carbide (Q1), Tungsten carbide (U7)
Secondary seals: FKM (V)
Metal parts: CrNiMo steel (G)
Advantages:
Excellent torque transmission due to clutch drive between seal head and drive collar.

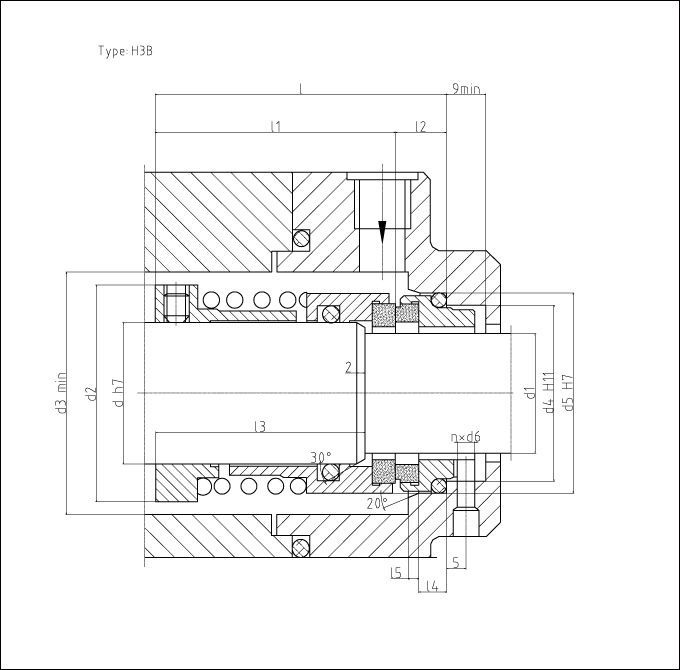

AS-H3B Dimensions(mm)
d d1 d2 d3 d4 d5 d6 l l1 l2 l3 l4 l5
24 20 38 40 29 35 3 62 49 13 42 5 2
26 22 40 42 31 37 3 62 49 13 42 5 2
28 24 42 44 33 39 3 64 51 13 44 5 2
30 25 44 46 34 40 3 64 51 13 44 5 2
33 28 47 49 37 43 3 64 51 13 44 5 2
35 30 49 51 39 45 3 68 55 13 48 5 2
38 33 54 58 42 48 3 71 58 13 51 5 2
40 35 56 60 44 50 3 73 60 13 53 5 2
43 38 59 63 50 56 4 76 61 15 53 5 2
45 40 61 65 52 58 4 76 61 15 53 5 2
48 43 64 68 55 61 4 76 61 15 53 5 2
50 45 66 70 57 63 4 80 65 15 57 5 2
53 48 69 73 60 66 4 80 65 15 57 5 2
55 50 71 75 62 68 4 82 65 17 57 5 2
58 53 76 83 65 71 4 84 68 16 59 5 2
60 55 78 85 67 73 4 84 68 16 59 5 2
63 58 81 88 70 79 4 84 68 16 59 7 2.5
65 60 84 90 72 81 4 88 72 16 63 7 2.5
68 63 87 93 75 84 4 88 72 16 63 7 2.5
70 65 90 95 77 86 4 89 73 16 64 7 2.5
75 70 95 104 83 92 4 94 75 19 66 7 2.5
80 75 100 109 88 97 4 94 75 19 66 7 2.5
85 80 107 114 96 105 4 100 81 19 72 7 2.5
90 85 112 119 101 110 4 100 82 18 72 7 2.5
95 90 119 124 106 115 4 105 87 18 77 7 2.5
100 95 124 129 111 120 4 105 87 18 77 7 2.5
105 100 129 134 116 125 4 105 87 18 77 7 2.5
