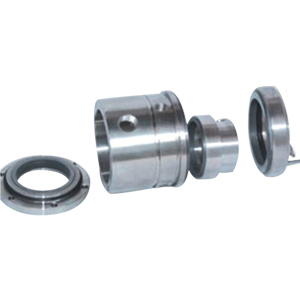

AS-S0Z: AES S0Z mechanical seal

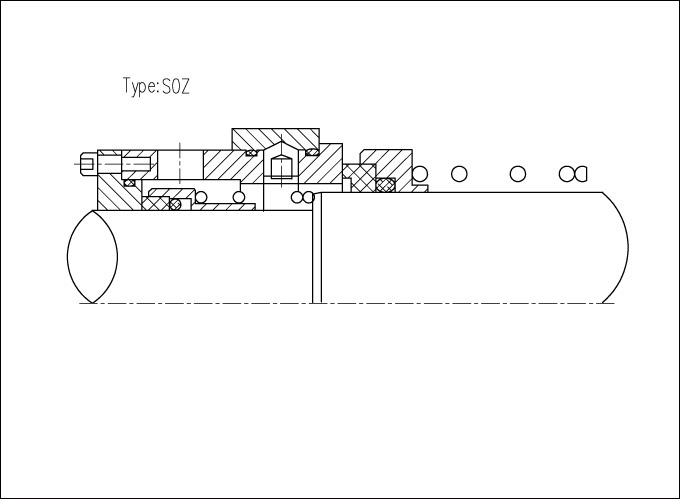

Structure Description:
Equivalent to AES S0Z mechanical seal
Seals to suit Alfa Laval Contherm scraped surface heat exchangers
Operating Limits:
Temperature:-40ºC to +300ºC
Pressure: ≤1.5MPa
Speed: ≤12m/s
Materials:
Stationary Ring:Silicon Carbide, Carbon ,TC,
Rotary Ring:Carbon ,Silicon Carbide,TC
Secondary Seal:EPDM,Viton
Spring and Metal Parts:304/316
Structure Description:
Equivalent to AES S0Z mechanical seal
Seals to suit Alfa Laval Contherm scraped surface heat exchangers
Operating Limits:
Temperature:-40ºC to +300ºC
Pressure: ≤1.5MPa
Speed: ≤12m/s
Materials:
Stationary Ring:Silicon Carbide, Carbon ,TC,
Rotary Ring:Carbon ,Silicon Carbide,TC
Secondary Seal:EPDM,Viton
Spring and Metal Parts:304/316
