AS-S01: Burgmann/John crane pump seal replacement

Description:
AS-S01: Widely used pump seals supplied by Saisi Mechanical Seal Co. Ltd.

Share this site:

  • Product Detail
  • Make an inquiry
AS-S01
Structure Description:
Reaplcement of Burgmann and John crane pump seal
Operating Limits:
Temperature：-20℃ to +120℃
Pressure： ≤0.5MPa
Speed： ≤10m/s
Standard Size:6-60mm
Materials:
Stationary Ring:Ceramic(Alumina),Silicon Carbide Reaction Bonded
Rotary Ring:Q5,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide Reaction Bonded
Secondary Seal:Fluorocarbon Rubber(Viton),Nitrile(NBR),Ethylene Propylene(EPDM)
Spring and Metal Parts:304/316
Seat Types:G4/G9
Applications：
Clean Water

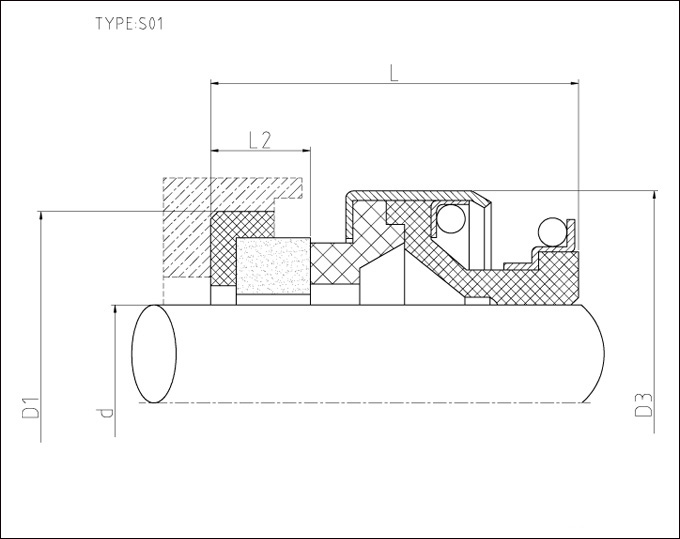

AS-S01 Dimensions(mm)
Size d D3 D1 L L2
6 6 18.0 18.0 14.0 4.0
8S 8 18.0 22.0 15.0 4.0
8M 8 20.0 22/26 15.0 4/5.5
8L 8 24.0 26.0 15.0 5.5
10 10 24.0 26.0 21.0 8.0
11 11 24.0 26.0 21.0 8.0
12 12 24.0 25/26 21.0 8.0
13 13 24.0 26.0 19.5 5.5/8
13L 13 28.0 28.0 21.0 8.0
13H 13 32.0 29.5 30.5 8.0
14 14 28.0 28/28.5 21.0 8.0
14L 14 32.0 29.5 21.0 8.0
15S 15 28.0 28.5/30 21.0 8.0
15M 15 32.0 30/29.5 21.0 8.0
15L 15 39.0 38.0 21.0 8.0
16S 16 28.0 29.5/30 21.0 8.0
16M 16 32.0 29.5 21.0 8.0
16L 16 39.0 38.0 21.0 8.0
16H 16 32.0 30.0 21.0 8.0
17 17 39.0 42.0 21.0 8.0
18 18 39.0 42.0 21.0 8.0
19 19 39.0 42.0 21.0 8.0
20 20 39.0 42.0 21.0 8.0
20L 20 42.0 45.0 23.0 10.0
22S 22 36.0 45.0 26.5 10.0
22L 22 42.0 45.0 23.0 10.0
23 23 47.0 50.0 23.5 10.0
24 24 47.0 50.0 23.5 10.0
25 25 42.0 50.0 23.5 10.0
25L 25 47.0 50.0 23.5 10.0
26 26 47.0 50.0 23.5 10.0
27 27 47.0 50.0 23.5 10.0
28 28 54.0 57.0 25.0 10.0
30 30 54.0 57.0 25.0 10.0
32 32 54.0 57.0 25.0 10.0
35 35 60.0 63.0 26.0 10.0
38 38 65.0 68.0 30.0 12.0
40 40 65.0 68.0 30.0 12.0
45 45 70.0 73.0 32.0 12.0
50 50 85.0 88.0 38.0 15.0
55 55 85.0 88.0 38.0 15.0
60 60 105.0 110.0 45.0 15.0
