AS-Type 1: Jonh crane Type 1 AES P05U unbalanced mechanical seal

Description:
AS-Type 1: Replacement of Burgmann MG901 John crane Type 1 AES P05U Flowserve 51 Vulcan A5 elastomer bellows seal

Share this site:

  • Product Detail
  • Make an inquiry
AS-Type 1
Structure Description:
Equivalent to John crane type 1 mechanical seal
UNBALANCED
SINGLE SPRING
BI-DIRECTIONAL
ELASTOMER BELLOWS
SET SCREW LOCK COLLARS AVAILABLE
Operating Limits:
Temperature:160°C / 320°F
Speed: 20 M/S – 4000 FPM
Pressure: 150 PSI / 10 BAR
Standard size:12-100mm or 0.5-4.0 inch
Materials:
Rotary ring:CARBON GRAPHITE, SILICON CARBIDE, TUNGSTEN CARBIDE
STATIONARY SEATS: CERAMIC, SILICON CARBIDE, TUNGSTEN CARBIDE, STAINLESS STEEL
BELLOWS: BUNA, VITON, EPDM, AFLAS, NEOPRENE
METAL PARTS: 304/316

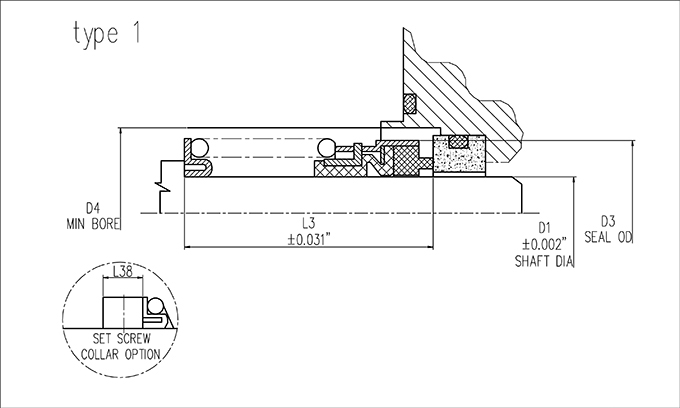

D1 D3 D4 L3 L38
1.000 1.500 1.750 1.562 0.375
1.125 1.625 1.875 1.625 0.375
1.250 1.812 2.000 1.625 0.375
1.375 1.875 2.125 1.687 0.375
1.500 2.000 2.250 1.687 0.375
1.625 2.250 2.500 2.000 0.375
1.750 2.375 2.625 2.000 0.375
1.875 2.500 2.750 2.125 0.375
2.000 2.625 2.937 2.125 0.375
2.125 2.812 3.125 2.375 0.500
2.250 2.937 3.250 2.375 0.500
2.375 3.062 3.375 2.500 0.500
2.500 3.187 3.500 2.500 0.500
2.625 3.375 3.750 2.750 0.500
2.750 3.500 3.875 2.750 0.500
2.875 3.625 4.000 2.875 0.500
3.000 3.750 4.187 2.875 0.500
3.125 4.000 4.437 3.125 0.500
3.250 4.125 4.562 3.125 0.500
3.375 4.250 4.687 3.125 0.500
3.500 4.375 4.812 3.125 0.500
3.625 4.500 4.937 3.250 0.562
3.750 4.625 5.062 3.250 0.562
3.875 4.750 5.187 3.375 0.562
4.000 4.875 5.312 3.375 0.562
