AS-Type 9B: AES M02 John crane Type 9B PTFE wedge seal

Description:
AS-Type 9B: PTFE wedge seal replacement of AES M02 John crane Type 9B/109B Sterling 290B Vulcan 1609B balanced seal

Share this site:

  • Product Detail
  • Make an inquiry
AS-Type 9B:John Crane Type 9B/Type 109B,AES M02,Sterling 290B,VULCAN 1609B
Structure Description:
Equivalent to John Crane Type 9B/Type 109B,AES M02,Sterling 290B,VULCAN 1609B
Multiple spring , balanced seal
Operating Limits:
Temperature:-40---250℃
Speed: 15m/s
Pressure: 25bar
Standard size: 1"--4"
Materials:
Seal ring: Car,Sic,Ssic,TC,Ceramic
Secondary seal: NBR,EPDM,Viton, etc.
Spring and metal parts:304,316,HAST.C

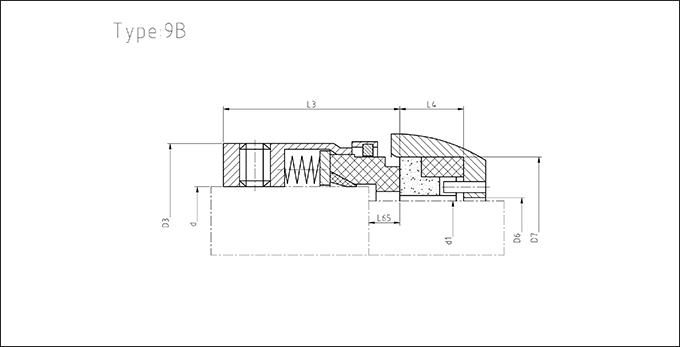

AS-Type 9B Dimensions(Inches)
Size/Inch d d1 D3 D6 D7 L3 L4 L65
1.000 25.4 22.2 40.10 22.9 38.10 33.32 10.30 6.40
1.125 28.5 25.4 43.36 26.1 41.28 34.93 11.10 7.90
1.250 31.7 28.5 48.13 29.3 44.45 34.93 11.10 7.90
1.375 34.9 28.5 51.30 29.3 44.45 36.50 11.10 8.70
1.500 38.1 31.7 54.48 32.4 47.63 36.50 11.10 8.70
1.625 41.2 34.9 60.83 35.6 50.80 44.45 11.10 8.70
1.750 44.4 38.1 64.00 38.8 53.98 44.45 11.10 9.50
1.875 47.6 41.2 65.58 42.4 60.33 44.45 12.70 9.50
2.000 50.8 44.4 70.36 45.5 63.50 44.45 12.70 9.50
2.125 53.9 47.6 76.70 48.7 66.68 52.37 12.70 11.10
2.250 57.1 50.8 79.88 51.9 69.85 52.37 12.70 11.10
2.375 60.3 53.9 83.06 55.0 76.20 52.37 14.30 11.10
2.500 63.5 57.1 86.23 58.2 79.38 52.37 14.30 11.10
2.625 66.6 60.3 89.40 61.4 82.55 52.37 14.30 11.10
2.750 69.8 63.5 92.58 64.6 85.73 52.37 14.30 11.10
2.875 73.0 66.6 95.76 67.7 85.73 52.37 15.90 11.10
3.000 76.2 69.8 97.33 70.9 88.90 52.37 15.90 11.10
3.125 79.3 73.0 100.50 74.1 95.25 52.37 15.90 11.10
3.250 82.5 76.2 105.28 77.3 98.43 52.37 15.90 14.30
3.375 85.7 79.3 108.46 80.5 101.60 52.37 19.80 14.30
3.500 88.9 82.5 111.63 83.6 104.78 52.37 19.80 14.30
3.625 92.0 85.7 114.80 86.8 107.95 52.37 19.80 14.30
3.750 95.2 88.9 117.98 90.0 111.13 52.37 19.80 14.30
3.875 98.4 92.0 121.16 93.1 114.30 52.37 19.80 14.30
4.000 101.6 95.2 124.33 96.3 117.48 52.37 19.80 14.30
